EFAF500-1250Automatic Spool Winding Line

Product Overviews :

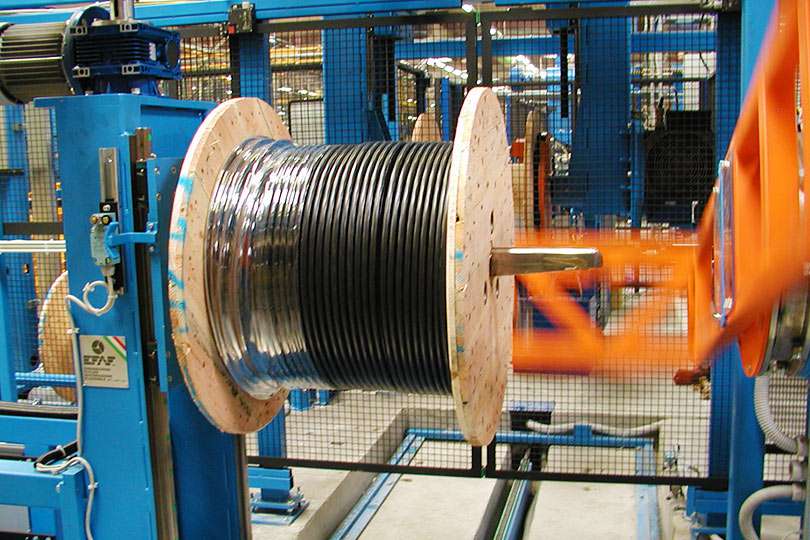

The unit is mainly used for rewinding and wrapping, wire diameter 6~22mm. Full automatic process of the PE film wrapped. Take-up spool can be wood or iron material.

Technical Specification :

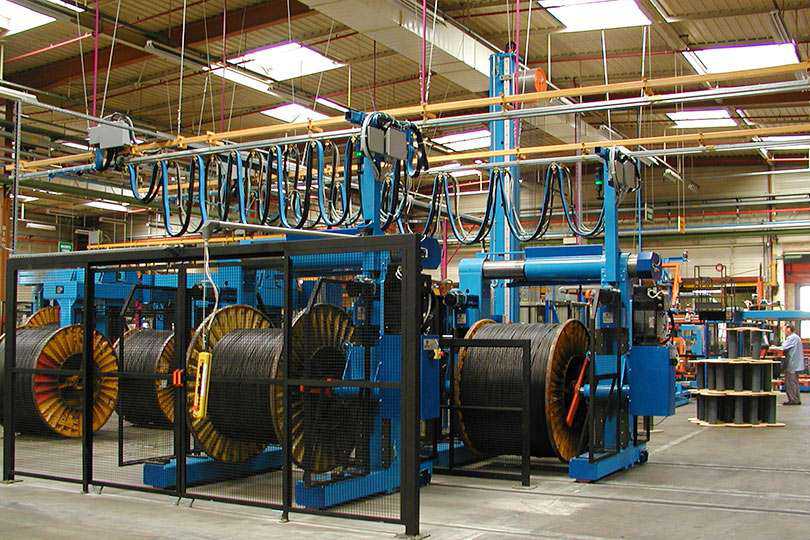

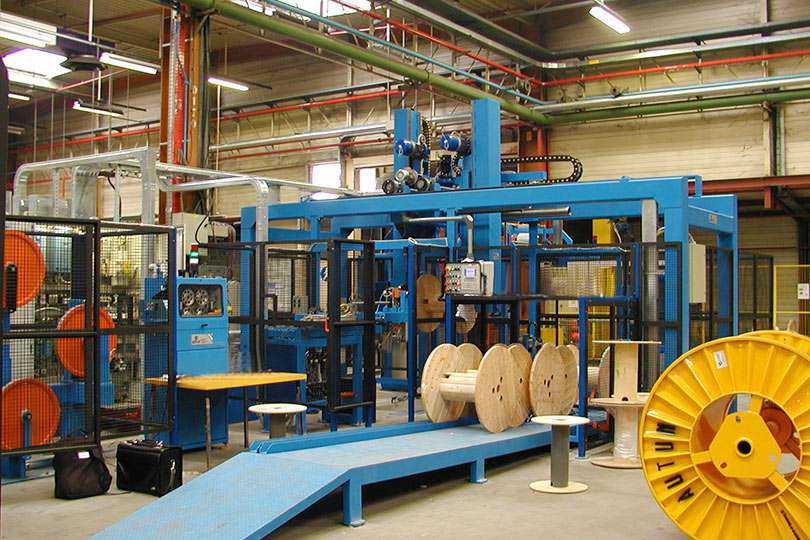

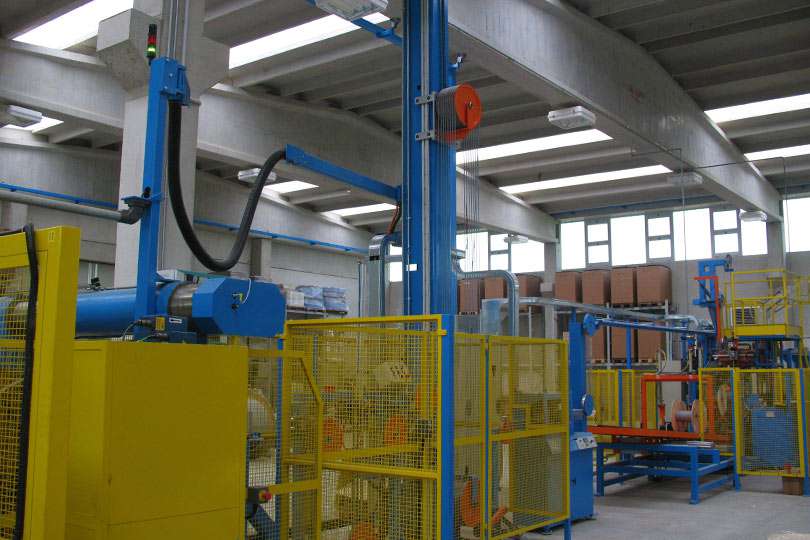

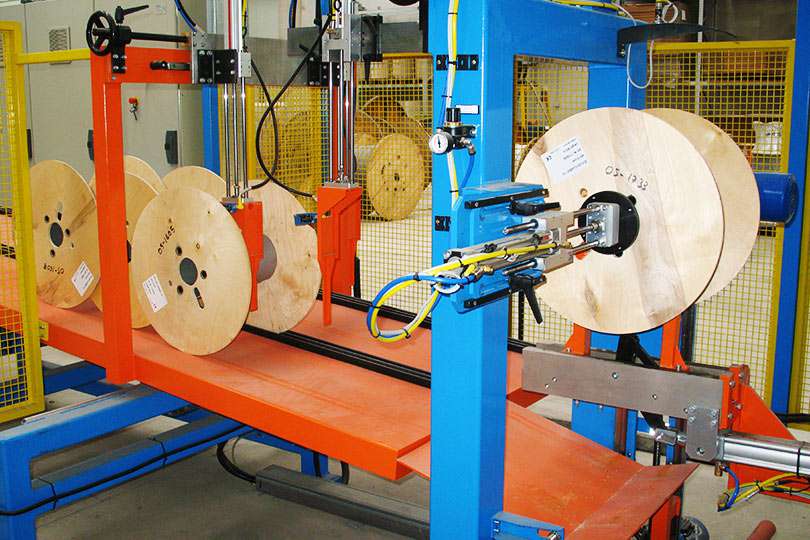

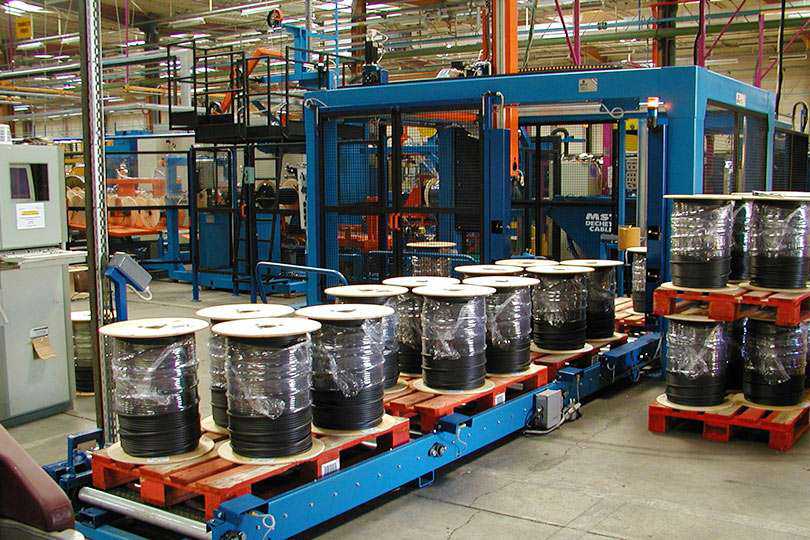

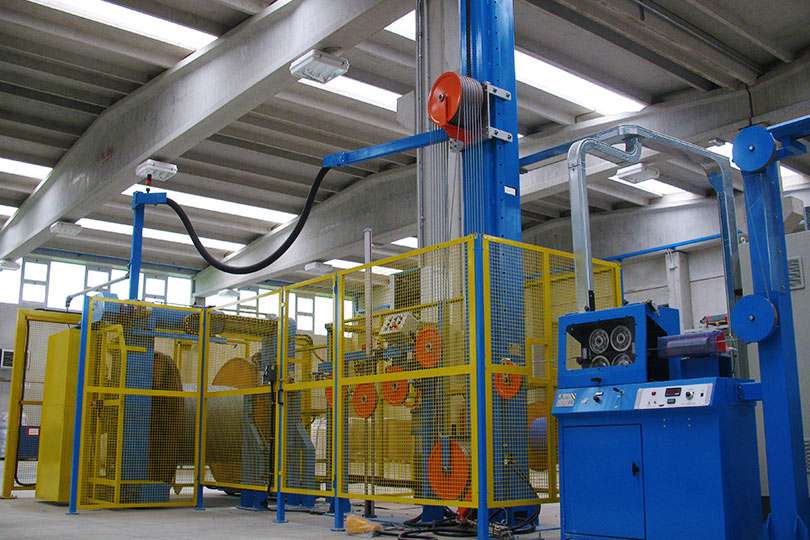

The unit is composed by motorized pay-off, accumulator, spark tester, length counter, spool storehouse, locating device, automatic take-up, spool wrapping machine. Control system with 12” HMI + 1200PLC. It is a cost-effective coil rewinding package unit.

Main parameter:

1. Package type: wood or iron spool
2. Suitable wire dia.: Ф2.5mm-10 mm
3. Conductor type: round, flat, flexible, solid cables
4. Capacity: 80 coils/h, 500m/coil
5. Spool OD: 600mm~1250mm
6. Spool bore dia.: Min.80mm
7. Spool width: 500mm~950mm
8. Weight: Max. 2000kg

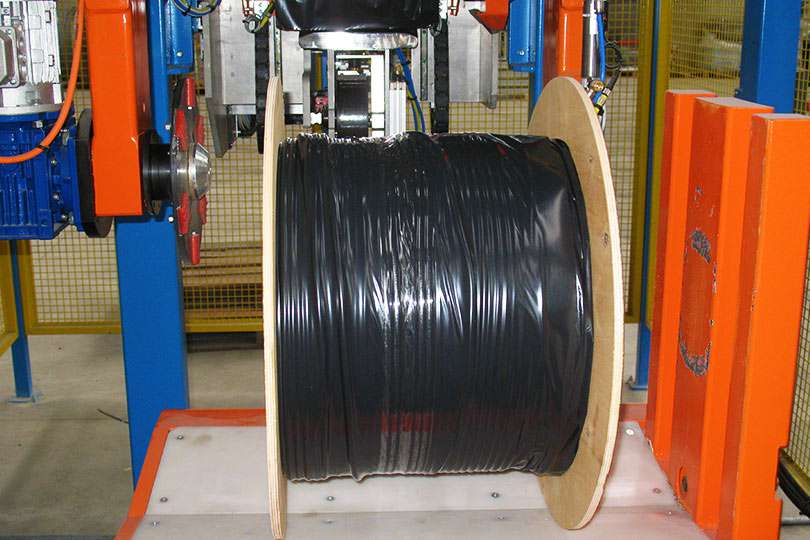

9. Wrapping material: PE film
10. System with recipe management, can be a key to start; It may stop automatically when the pay off length reach the preset data and the spark breakdown alarm.
11. Control system: Distributed I/O bus control, Siemens
